High Temperature Hotels HTF Fan For Fire Fighting Purpose Exhaust Extractor Steam Vacuum Cleaner Draft Circulation Cooling Fan

10.0 Sets
MOQ
High Temperature Hotels HTF Fan For Fire Fighting Purpose Exhaust Extractor Steam Vacuum Cleaner Draft Circulation Cooling Fan
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Axial Flow Fan, Fire Control Blower Fan
Applicable Industries: Hotels, Food & Beverage Factory, Construction Works
Customized Support: OEM, ODM
Electric Current Type: AC
Mounting: FREE STANDING
Blade Material: Cast Iron
Model Number: HTF
Voltage: 380V
Warranty: 1 Year
After-sales Service Provided: Video Technical Support, Engineers Available To Service Machinery Overseas
Blade: Cast Iron
Temperature: Ventilation:-80 C Fire:280 C Runs 30mins
Performance: Low Noise,Stroge Air Volume
Dimensions: 480x430x480-1200x1620x1680mm
Certification: CCC, Ce, ISO
Basic Infomation
Certification: CCC, ce, ISO
Model Number: HTF
Payment & Shipping Terms
Packaging Details: Fire Control Blower Fan According to client specific requirments
Supply Ability: 10000 Set/Sets per Month
Product Description

Headers

Product Description

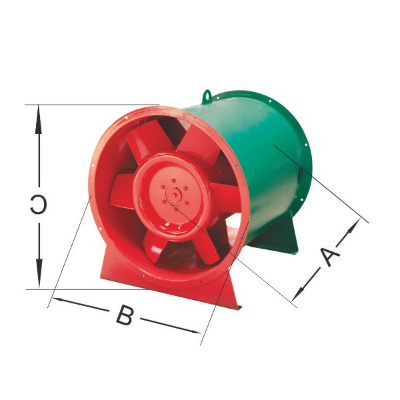

High Quality Fire Control Blower Fan

1.Materials:100% copper Motor,best

2.Feature:It's equipped with double speed motor.Normally,the motor runs at low speed for ventilation.Once fire happens,the motor will be changed for high speed automatically through electric control system and remove the smoke rapidly within half an hour.

3.Usage:Widely used for fire control,smoke extraction and ventilation in fire control required constructions such as metro,tunnel,gym,high-rise building,underground store,workshop and oven.

4.Temperature:When used for ventilation,the temperature of air inlet should be below 80°C.When for fire control,the fan can be running continually for more than 30mins when the temperature of smoke reaches 280°C

Voltage,frequency&material can be customized

Model No.
(NO.)		 Voltage
(V)		 Power
(KW)		 Revolution
(rpm)		 Air Volume
(m3/h)		 Pressure
(Pa)
5# 380 3/2.5 2900 6817-9824 752-510
1450 3410-4912 188-127
6# 380 5.5/4.5 2900 13197-16090 760-510
1450 6599-8045 190-127
7# 380 8/6.5 1450 18908-24380 728-610
960 12518-16141 319-267
8# 380 8/6.5 1450 26012-31421 723-600
960 17222-20800 317-263
9# 380 11/9 1450 267613-33510 840-562
960 18216-22186 368-246
10# 380 11/9 1450 35000-45679 770-630
960 24019-30255 338-276
11# 380 16/13 1450 48500-51552 690-580
960 36375-38664 387-326
12# 380 17/12 960 55650-62760 740-620
720 43311-47072 416-351
13# 380 17/12 960 56031-74708 807-600
720 42023-56031 454-338
15# 380 20/15 960 76041-93800 819-623
720 57031-70350 461-350
