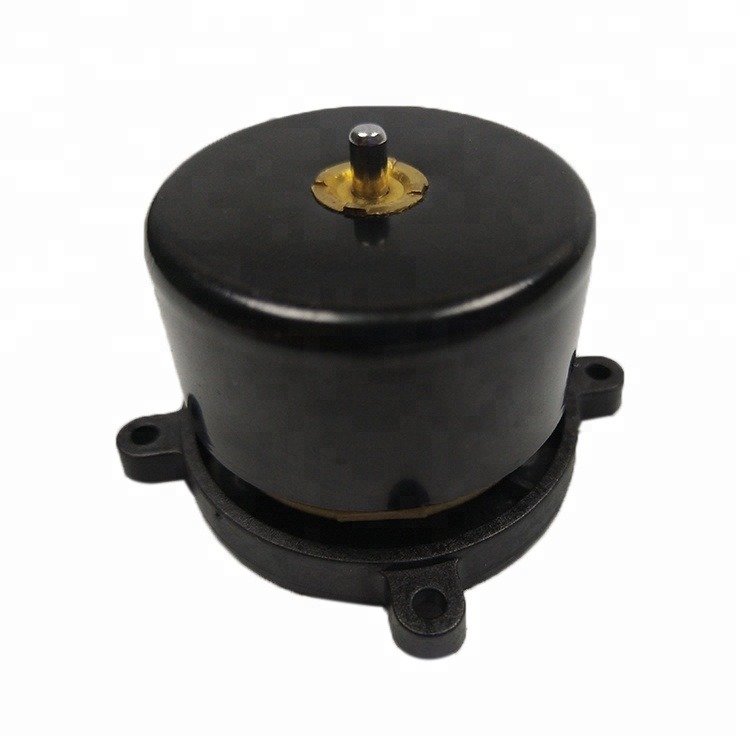

12 volt dc drip proof mini fan motor 37mmx25mm

500.0 Pieces
MOQ
12 volt dc drip proof mini fan motor 37mmx25mm
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: Other
Model Number: SF3725S/BM/24V
Usage: FAN, Home Appliance
Type: Micro Motor
Construction: Permanent Magnet
Commutation: Brushless
Protect Feature: Drip-proof
Speed(RPM): 3000PRM
Continuous Current(A): 0.15A
Product Name: 12 Volt Dc Fan Motor
Weight: 80g
Bearing: Sleeve/Ball Bearing
Life Expectancy: 15000-50000h
Operating Temperature: -10℃ ~ 60℃
Operating Voltage Range: 15~25.5V
Noise: 36.7dB-A
Feature: Auto Re-start, Polairty Protection
Option: PWM, FG, RD
OEM: Accpeted
Certification: Ce, RoHS, ISO9001
Basic Infomation
Certification: ce, RoHS, ISO9001
Model Number: SF3725S/BM/24V
Payment & Shipping Terms
Packaging Details: Carton package
Supply Ability: 300000 Piece/Pieces per Month 12 volt dc fan motor
Product Description
DC Brushless Motor

Application

Office computer peripherals, Electronic digital consumer products, Industrial control products, Medical equipments, Fans, etc.

Product Name
12 volt dc fan motor
Phase & Poles
Single phase 4 poles
Rotor
External rotor
Rotation Direction
CW / CCW
Materials
Cast iron housing, PBT plastic stand, Stainless steel shaft
Features
Reverse protection; Auto Re-start
Bearing & Life time
Sleeve bearing: 15000~20000h; 2 ball bearing: 40000~50000h
Features
Reverse protection; Auto Re-start
Operating Temperature
-10℃ ~ 60℃
Lead Wire
Standard: RED: Positive(+); BLACK: Negative(-)
Wire insert: 2.5-2P / NOP(Tin exposed 5mm)
Custom: RED: Positive(+); BLACK: Negative(-); YELLOW: Function wire.
Wire insert: 2.5-3P/4P/NOP(Tin exposed 5mm)
Certification
CE, RoHS


Dimension: Unit (mm)

Model
Rated
Voltage
Operating Voltage Range
Rated
Current
Rated Input Power

No-load Speed
Noise
NO
VDC
VDC
Amp
Watt
R.P.M
dB-A
SF3725S/BL
12
6to13.5
0.12
1.44
3000
30.2
SF3725S/BM
12
6to13.5
0.15
1.80
4000
33.4
SF3725S/BH
12
6to13.5
0.18
2.16
5000
36.7
SF3725S/BL
24
15to25.5
0.12
2.88
4000
33.4
SF3725S/BM
24
15to25.5
0.15
3.60
5000
36.7
SF3725S/BH
24
15to25.5
0.18
4.32
6000
39.5

1. SFxxxxS/BL is two models, SFxxxxSL, SFxxxxBL

2. S/B "S" for Sleeve bearing; "B" for 2 ball bearing

Our Service

1. 100 % testing before the fan leave our factory

2. Good after services to every customer

3. We often give one-year warranty on quality of products, and will give your refund if any quality problems occurs when you receive our items.

Quality Control:

1.Incoming quality control

2.In process quality control

3.QA Inspection

4.100% testing before the packing

Why Choose Us

Brand:SANLY


Main products:
1. DC Axial Fans
2. DC Frameless Fans
3. DC Blower Fans
4. DC Centrifugal Fans
5. DC Cross Flow Fans
6. Small DC Brushless Motors

Certificate: CE, RoHS, ISO9001, etc.

Q1: Are you a factory or trading company ?
A1: We are a factory.

Q2: What is DC Fan and AC fan?
A2: DC fan is powered by DC voltage,normal voltage is 5V 12V 24V.
AC fan is powered by AC voltage,normal voltage is 110V,220V and 380V.


Q3:How about the lifetime of fan?
A3:

Bearing type
Lifetime
Sleeve Bearing
20000 hours
Hydraulic Sleeve Bearing
30000 hours
Dual Ball Bearing
50000 hours

Q4: What effects the quoted price for the fan?

1 size of the fan,

2 voltage,

3 current,
4 speed,

5 air flow,

6 noise,
7 bearing type,

8 two wire or three wire,

9 cable length,
10 connector type,

11 function,

12 quantity
