Home /Products/Brushless DC Blower/Home Use DC 4015 Axial Fan 5V 12V 24V Brushless DC Axial Fan 40x40x15 mm

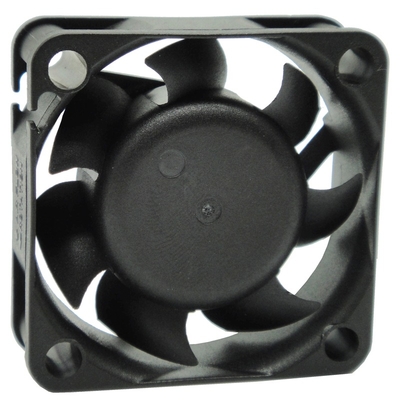

Home Use DC 4015 Axial Fan 5V 12V 24V Brushless DC Axial Fan 40x40x15 mm

1000.0 Pieces
MOQ
$1.05(1000 - 4999 Pieces) $0.93(5000 - 9999 Pieces) $0.92(>=10000 Pieces)
Price
Home Use DC 4015 Axial Fan 5V 12V 24V Brushless DC Axial Fan 40x40x15 mm
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Axial Flow Fan
Applicable Industries: Home Use, Food Shop, Printing Shops, Construction Works , Energy & Mining, Advertising Company
Electric Current Type: DC
Mounting: FREE STANDING
Blade Material: Plastic
Model Number: YDL4015B4
Voltage: 24
Warranty: 1 Year
After-sales Service Provided: Video Technical Support
Certification: UL, Ce, CCC, RoHS
Weight: 23.5g
Power Supply: DC: 5V / 12V / 24V
Color: Black OR Oem Color
Motor Type: BLDC Motor
Size: 40x40x15 Mm
Keyword: Dc Brushless Axial Fan 40x40x15mm
Current: 0.04A
Air Flow: 4.95~8.68cfm
Noise Level: 19.4 DBA
Bearing Type: Dual Ball Bearing Or Sleeve Bearing
Basic Infomation
Certification: UL, ce, CCC, RoHS
Model Number: YDL4015B4
Payment & Shipping Terms
Packaging Details: carton / pallet package CUSTOMIEZED PACKING DESICON
Supply Ability: 500000 Piece/Pieces per Month axial fan
Product Description

axial fan 5V 12V 24V DC 4015 dc brushless axial DC fan 40x40x15 mm

Product Description
Size40X40X15 MM
Construction

Glass Fibre reinforced Plastic blade and housing

PBT UL94V-0 Rating

Operating Temperature

Ball bearing:-10°C to +70°C

Sleeve bearing:-10°C to +60°C
Insulation Resistance10meg Ohm min,at 500 VDC (between frame and terminal)
Dielectric Strength

5mA max,at 500 VAC 60hz one minute (between frame and terminal)

Function Options

FG, RD, AUTO RESTART, POLARITY PROTECTION

Life Expectancy

Dual ball: 50000-70000 hours@environment 40°C / 65% humidity

sleeve: 30000 hours@environment 40°C / 65% humidity

Rated voltage: 5v /12v /24v according to customer's requirement

Air flow, air pressure, speed and rated voltage can be customized based on customer's requirement

Bearing: Sleeve or Ball ( sleeve working time for 30,000 hours, ball working time for 50,000 hours)

The fan with various functions are available, such as 3 wires Tachometer signal output , Alarm signal output , Dual speed with Tachometer signal , Temperature control, PWM , 4 wires FG+Alarm function, Waterproof , etc…

Yccfan ball bearing is Minebea NMB brand, it is imported from Japan

Hot selling products:

DC AXIAL FAN DC BLOWER FANAC AXIAL FAN

20X20X10MM

20X20X06MM

60X60X30MM

20x20x06mm; 40x40x07mm25X25X07MM60x60x30mm
25x25x07mm; 40x40x10mm35X35X07MM80x80x25mm
25x25x10mm; 40x40x15mm40X40X10MM80x80x38mm

30x30x07mm; 35x35x10mm

52X40X10MM92x92x25mm

40x40x20mm; 40x40x28mm

40X40X20MM120x120x25mm

45x45x10mm; 50x50x10mm

50X50X15MM120x120x38mm
60x60x10mm; 60x60x15mm50X50X20MM150x150x50mm
60x60x20mm; 60x60x25mm55X55X12MM φ158x50mm
60x60x28mm; 60x60x38mm60X60X15MM 172x150x51mm
70x70x10mm; 70x70x15mm60X60X25MM 200x200x60mm
70x70x20mm; 70x70x25mm60X60X28MM φ210x72mm
80x80x10mm; 80x80x15mmφ70x20mm φ220x60mm
80x80x20mm; 80x80x25mm75X75X15MM; 120X120X32MM
80x80x38mm; 92x92x25mm75X75X25MM;
92x92x32mm; 92x92x38mm75X75X30MM
120x120x25mm; 120x120x32mm93X93X30MM

120x120x38mm; 140x140x25mm

97X94X33MM
172x150x51mml φ200x70mmφ100x25mm; φ130x69mm
EC AXIAL FAN
EC 6028: 60X60X28MM EC 6038: 60X60X38MM EC 8038: 80X80X38MM
EC 9238: 92X92X38MM EC 1238: 120X120X38MM EC 1751: 172X150X51MM

Packaging & Shipping

Packing: carton box or as customer's requirements

Shipping:

1. The fan will be delivered by express ( FedEx, DHL, DHl or TNT ) for under 100 kg, our shipping agnet have perfect discount with these express company.

2. Large Measure are shipped by ship or by air as customer's requirements.

3. The fan can be dispatched by our truck driver if your factory is in Shenzhen, Dongguang or Guangzhou City.

Certifications

1. All cooling fan have passed CE , Most of them also got UL & CUL certificate

2. Our company have approved IS9001 & ISO14001 certificate .

Company Information

Quality Control

Visting & Exhibition

We welcome the customers and visitors from home and abroad. By face-to-face talking, we can better know each other and solve each others' questions more effectively. Some customer from US, Germany, Korea.. fly to our factory to sign the contacts.

Function-RD/FG/PWM

FAQ

1. What are kinds of cooling fan or centrigugal fan supplied by your company?

Answer: we can provide DC cooling fan, AC cooling fan, EC cooling fan and blower fan.

2. What are kinds of information provided by the customer before inquiry?

Answer : please kindly advise the size, voltage, the type of bearing, the speed of fan , or air flow.

3. How many types bearing of our cooling fan are there in our compnay at present?

Answer : now we have two types bearing for the fan, sleeve and ball, working time of sleeve is for 30,000 hours, the ball is for 50,000 hours.

4.How to detect the data of cooing fan in your company?

Answer: the speed and voltage are detected by the tachometer, air flow is found by wind tunnel.

5. How to control the quality of products in your company.

Answer: 100% total testing before each of fan leaves our factory.
