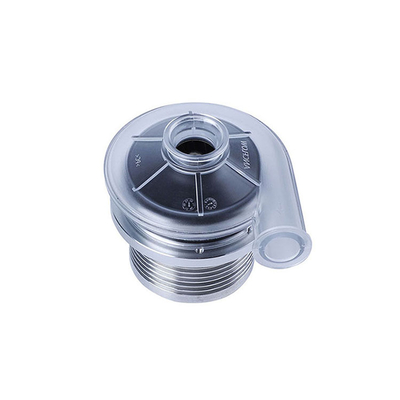

Customized Fan 24v 430lpm Fan Motor DC Brushless External Centrifugal Blower Fan Industrial Fan

1 piece
MOQ
Customized Fan 24v 430lpm Fan Motor DC Brushless External Centrifugal Blower Fan Industrial Fan
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Year
Customized Support: OEM, ODM
Rated Voltage: 24VDC
Model Number: AB S8005-24V-1
Application: Fan Blower
Pressure: 14.5kPa
Power Source: -
Max.Speed: 51,500 Rpm
Max.Flow-rate: 950LPM(57.0m³/h)
Max.flow Speed: 97.27m/s
Max.Static Pressure: 14.5kPa
Rated Power: 142W
Mass: 380g
Size: 85.3(L)*82.2(W)*82.0(H)mm
Housing Material: PC+ Aluminum
Basic Infomation
Model Number: AB S8005-24V-1
Payment & Shipping Terms
Supply Ability: 10000 Piece/Pieces per Week
Product Description
Product Parameter
Product Model
AB S8005-24V-1
Brand
ANCFLOW
Product SPEC
AB S8005-24V-14.5kPa-1000LPM
max.Speed
51,500 rpm
Part Name
Brushless DC Blower
max.Flow-rate
950LPM（57.0m³/h）
Motor Driver
AC05
max.flow Speed
97.27m/s
Motor Driver Layout
Integrated
max.Static Pressure
14.5kPa
Lifetime
20,000h
Rated Speed
45,000rpm
Rate Voltage
24VDC
Rated Airflow
430LPM（25.8m³/h）
Voltage Range
14-28V
Rated Static Pressure
12.0kPa
Peak Power
195W
Work Temp.
-20℃~+50℃
Rated Power
142W
Humidity Range
≤85%RH
ID of Inlet
16.8mm
ID of Outlet
14.4mm
Mass
380g
Wire Length
300mm
Size
85.3(L)*82.2(W)*82.0(H)mm
Bearing
Ball Bearing (NMB)
Housing Material
PC+ Aluminum
Impeller Material
PA6
Application Scenarios
medical smoke removal equipment, ventilator, hydrogen fuel cell, cold chain sterilization equipment, disinfection and
sterilization equipment, oxygen generator, dental equipment, negative pressure isolation chamber, PARR, moxibustion smoking,
household fresh air system, temperature and humidity control, environmental monitoring equipment, gas detector, air cushion
aerator, glove box, industrial smoke/dust removal equipment, liquid atomization, cooling and drying equipment, agricultural
machinery, fishery aerator, etc.
Product Details
Company Profile
Certificates And Honors
Payment Shipment
FAQ
1) Are you a factory or only a trading company?
We have a factory to produce brushless DC blowers, fans, motors and motor drivers.
2) Why to choose us?
a. Professional- we always offer system solutions based on your specific application scenarions.
b. Reliable- we have a robust manufacturing and quality assurance system in place, can offer customers with high quality products with competitive price.
3) How abut the shipping cost?
Out price is an ex-work price. We can quote the price based on FOB, CIF&CNF as you like, then you can choose whether to use our forwarder or yours.
4) How about the price? Can you make it cheaper?
The price depends on product model types and its order size. The final quotation will be based on your full description of SOR or SPEC.
5)How about the lead time?
What is the payment? According to customer's specific requirements, if to choose a base model, then it will take 5-10 days after e-proof confirmed and your payment is received.
