Home /Products/Centrifugal Air Blower/High Efficiency Stainless Steel DC Motor Blower Forward Centrifugal Fans Air Ventilation Equipment Exhaust Blower 1HP

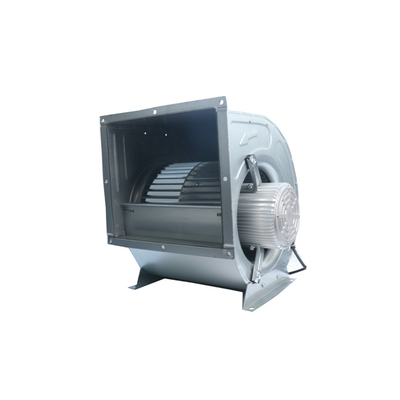

High Efficiency Stainless Steel DC Motor Blower Forward Centrifugal Fans Air Ventilation Equipment Exhaust Blower 1HP

50.0 pieces
MOQ
High Efficiency Stainless Steel DC Motor Blower Forward Centrifugal Fans Air Ventilation Equipment Exhaust Blower 1HP
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Centrifugal Fan
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops
Customized Support: OEM, ODM
Electric Current Type: DC
Blade Material: Stainless Steel
Mounting: FREE STANDING
Model Number: 10-10-DC
Voltage: 230V
Warranty: 3 Years
After-sales Service Provided: Online Support
Product Name: Industrial Centrifugal Fans
Application: Industrial Ventilation
Name: Forward Centrifugal Blower
Feature: High Efficiency
Size: 10 Inch
Usage: High Pressure Blowing
Material: Staineless Steel
Motor: Brushless DC Motor
Color: Silver
Bearing Type: Ball
Certification: Ce, GS
Basic Infomation
Certification: ce, GS
Model Number: 10-10-DC
Payment & Shipping Terms
Packaging Details: standard exporting carton package
Supply Ability: 1000 Piece/Pieces per Day
Product Description

Stainless Steel DC Motor Forward Centrifugal Blower Fans Air Ventilation Equipment Exhaust Blower 1HP

Product Description

Item. No.: 10-10-DC

External rotor motors are usually contained within the width of the fan housing, thus saving the space normally occupied by a standard motor. They are located in the air stream, so temperature is limited, and are generally of protection class IP44, so the air needs to be clean and dry to avoid motor contamination. Some of the smaller double inlet fans are IP54 protected to enhance the dust protection, and are resilient mounted at each shaft end to reduce the transmission of vibration. Low cost speed control is possible by supply voltage variation, either by electronic (triac) method or by transformer. Detachable discharge flanges enable 'without flange' or special mounting arrangements to be specified.

Specification Description
Motor Type External rotor motor, in the airstream
Supply

Single and three phase models
Protection IP44
Impellers

Forward curved models
Features

Efficient, low power consumption motor Low cost speed control Slim and standard scroll housings
Mounting

Discharge flange or scroll brackets
Pressure Medium
Speed Control Voltage variation
Size

Ø312 impeller
Flow rate

5011.9m³/h range maximum
Static Air Pressure

431.95 Pascals range maximum

Application

Air filtration, fume control, heating and cooling coils, small air handling units, solarium equipment, special effects equipment, electronic heatsink cooling.
