Home /Products/Brushless DC Blower/Hotels China Factory Metal Fans 120x120x38mm High Temperature Resistant Fierce Fan 12v 24v 48v Fans 12cm

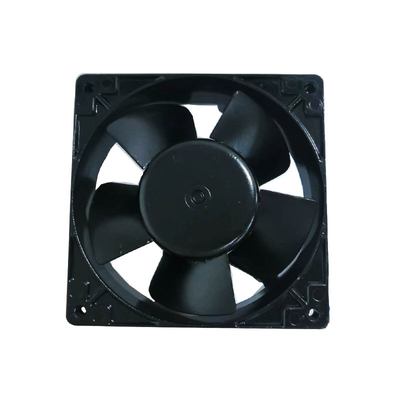

Hotels China Factory Metal Fans 120x120x38mm High Temperature Resistant Fierce Fan 12v 24v 48v Fans 12cm

100 pieces
MOQ
Hotels China Factory Metal Fans 120x120x38mm High Temperature Resistant Fierce Fan 12v 24v 48v Fans 12cm
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Axial Flow Fan
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Bevera
Customized Support: OEM, ODM
Electric Current Type: DC
Mounting: Screw Fixation
Blade Material: Metal
Warranty: 1 Year
After-sales Service Provided: Free Spare Parts
Basic Infomation
Payment & Shipping Terms
Packaging Details: Add cardboard boxes, knife cards, blisters, etc
Product Description

New considerations in 2022：

Dongguan Xiangxin Electronic Technology Co., Ltd,
It is a medium-sized factory integrating production, R & D and operation,Our
strengths：
1.Sample preparation period as low as 1-3 days（Sample fee can be refunded when purchasing bulk goods.)
2.Mass production cycle as low as 7-15 days(It is recommended to customize more than 1000 sets.）
3.Provide technical support, exclusive customization, development and design of molds and other services.
4.More than 10 years of industry experience helps you solve various problems in terms of cooling demand.
5.The company's business philosophy is "continuous innovation and pursuit of excellence"!!
XFAB1238-01
XFAB1238-02
XFAB1238-03
XFAB1238-04
XFAB1238-05
XFAB1238-06
XFAB1238-07
XFAB1238-08
XFAB1238-09
Product Description：


DC Brushless Fan General Specifications Frame size 120x120x38mm Rated Voltage 12V/24V/48V(optional) Bearing Type Dual Ball bearing Impeller Metal Lead Wire UL 1007 22# Special function PWM/FG/RD Waterproof grade IP55/IP65/IP68 Weight 650g
MODEL
Rated Voltage
Rated Current
Rated Power
Rated Speed
Max Air flow
Max Static Pressure
Noise Level
PART NO
VDC
Amp
Watt
RPM
CFM
mm-H2O
dBA
XFAB123812L
12
0.5
6
2500
94
7.6
44.6
XFAB123812M
12
0.9
10.8
3500
115
10.5
49
XFAB123824L
24
0.2
4.8
2500
94
7.6
44.6
XFAB123824M
24
0.6
14.4
3500
115
10.5
49
XFAB123848L
48
0.1
4.8
2500
94
7.6
44.6
XFAB123848M
48
0.3
14.4
3500
115
10.5
49
Terminal wire selection of fan
,The above is conventional terminal wire,If you need to customize other plugs，Please contact us.
Supply 9725 blower fan DC5v 12v 24v automobile cushion cooling fan

$ 6.99
Supply of electric appliance induction cooker support fan 12025 DC 18V Silent fan Customizable
$ 1.49
Free sample 80mm DC brushless fan DC 12V 24V 48V 80*80*38mm cooling fan
$ 3.69
40mm DC fan 5g communication power server switch industrial Seiko 40*40*28mm violence fan
$ 4.46
40*40*20mm waterproof DC brushless fan 5V 12v 24V customized IP68 deluge outdoor environment can be applied
$ 2.69
Supply 172*150*51mm water-proof and corrosion-proof fans,, industrial fans, resistant to strong acid and alka.

$ 13.88
View more fans...
Packaging and transportation mode
Plant and equipment pictures
Product use module
Beauty equipment
Projection instrument
Laser TV
Medical equipment
Air purification equipment
New energy vehicle module
Smart toilet
Large servers
Outdoor energy storage power supply

FAQ：frequently asked questions


Q:How many days does it take to customize the sample?
A:Regular samples can be sent in 1-3 days,Special customized products, such as waterproof fans and IP68 glue filling fans, need to be sent out in 3-7 days.

Q:How many days does the batch production cycle take?
A:Regular production cycle: the factory has sufficient raw materials in stock, and the goods can be delivered within 7-15 days,Special customized products shall be subject to the delivery date negotiated by both parties, for example, the cycle of designing and developing molds is relatively long.

Q:Can my order ship via UPS or DHL or FedEx or by Air or By Sea? And where is my order ship ?
A:Yes, we can ship. All orders ship from our factory warehouse.

Q:What is the daily output of your company? Can the quality system be improved?
A:Our company has two production workshops, with 8 production lines and automatic assembly lines running at the same time, and the daily output can reach more than 50000 sets,The quality department is an independent department that specially controls the product process and delivery quality. The company has passed ISO9001 quality management system.
