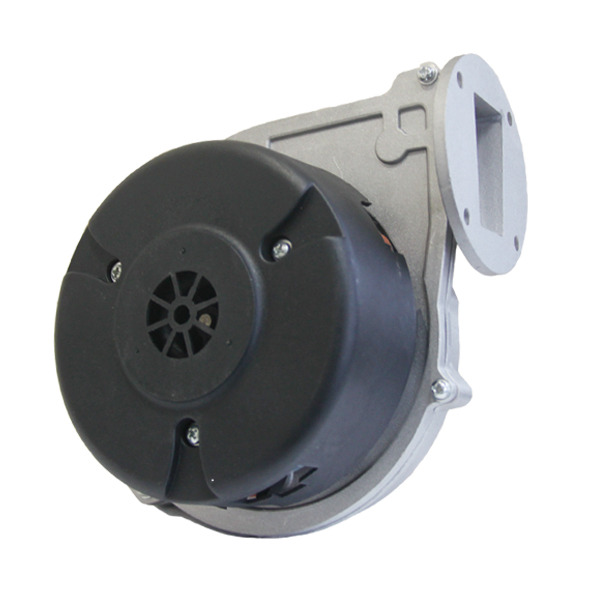

Hotels Wholesale Pellet Stove Blower

Electrical Parameters

Motor

Brushless dc motor

Insulation Class

Class "B"

Motor Protection

Locked rotor protection & Reverse Polarity protection

soft start & Automatic restart capability

Speed Control

PWM Input

Type of protection

IP20

Operation Mode

S1

Direction of Rotation

Clockwise, seen on rotor

Dielectric Strength

3mA max. at 1500VAC 50Hz/s between frame and (+)terminal

EMC

EN 55011 and EN50082-2

Mechanical Parameters

Impeller Dimension

Φ148mm

Material of Impeller

PA66+GF30 anti-static & fire resistant plastic

Mounting Position

Shaft horizontal or rotor on top

Specification

Item Code:  G-RG148

Rated
Voltage

Frequency
(Hz)

Rated
Current(A)

Input
Power(W)

Speed
(RPM)

Air Flow
(CFM)

Air Flow
(m3/h)

Static Pressure
(Pa)

Noise
dB(A)

Net Weight      (Kg)

230V

50/60

≤0.95

135

5600

110

187

3200

71

1.90

Outline Drawing

GND
