Home /Products/DC Blower Fan/Hotels 133mm EC Double Inlet Kitchen Exhaust Fan Centrifugal Blower Fan

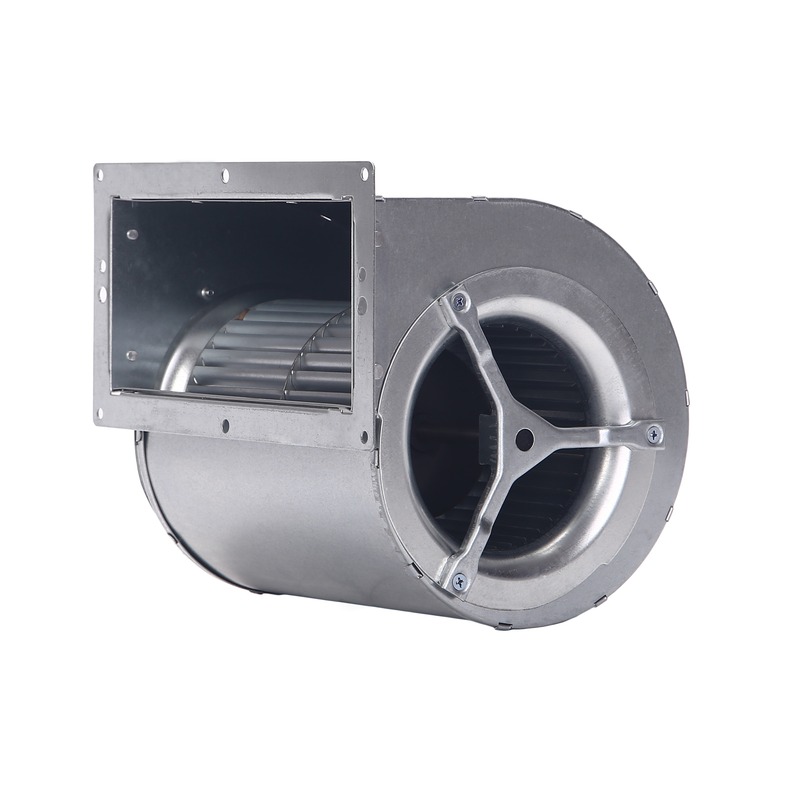

Hotels 133mm EC Double Inlet Kitchen Exhaust Fan Centrifugal Blower Fan

50 Pieces
MOQ
$66.70(>=50 Pieces)
Price
Hotels 133mm EC Double Inlet Kitchen Exhaust Fan Centrifugal Blower Fan
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Centrifugal Fan
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Bevera
Electric Current Type: AC
Blade Material: Galvanized Metal Sheet
Mounting: Any
Model Number: HD133-072E230H
Voltage: 230V
Warranty: 1 Year
After-sales Service Provided: Online Support
Rated Current (A): 0.85
Rated Speed(RPM): 1550
Air Pressure(Pa): 200
Noise Level(dBA): 66
Motor Type: Brushless DC External Rotor Motor
Type Of Protection: IP44
Insulation Class: B
Speed Control: 0-10VDC/PWM
Bearing: Ball Bearing
Frequency: 50/60Hz
Certification: Ce, RoHS, REACH
Basic Infomation
Certification: ce, RoHS, REACH
Model Number: HD133-072E230H
Payment & Shipping Terms
Packaging Details: Carton packing for samples, palllet with insde packing of foam or paper board
Supply Ability: 20000 Piece/Pieces per Month
Product Description
Product Description
Specification
Mechanical Characters
2-1
Dimension
170mm X 180mm X 254 mm (see dimension drawing)
2-2
Material of Impeller
Galvanized Metal Sheel
2-3
Number of Blades
38
2-4
Impeller Plate
Sheet-metal plate
2-5
Mounting Position
Any
2-6
Surface of Rotor
Coated in black
2-7
Bearing System
NMB ball bearing
2-8
Lead Wire
AC(AWG20#)，DC(AWG20#)
2-9
Weight
3000g
2-10
Package
standard
Electrical Protection
3-1
Locked-rotor Protection
The fan will stop working after 3 times locked-rotor.
3-2
Maximum Current
under Locked Rotor
A, Typical inrush current when the motor is trying to re-start under locked rotor conditions is 2~4 times the normal running
current reoccurring and for 16~20% of restarting cycle period.
B, If he CL function is used this restarting inrush current is about the same as the normal running current.
3-3
Reverse Polarity Protection
No damage if the positive and negative leads are reversed under maximum operation voltage conditions.
3-4
Over Voltage Protection
The circuit will be shut down automatically when input voltage over AC264V. And re-started when Voltage down to AC264V below.
3-5
Soft Start
In 5 seconds after power on and speed control voltage gets to 1.5V or PWM duty cycle at 10% above.
Company Profile
Heko Electronic (Suzhou) Co., Ltd is the professional manufacturer focus on external rotor motor fan and fan equipment. Heko is committed to supplying reliable quality fan products with competitive price for the industries such as Ventilation Equipment and System, HVAC System, Telecom Station, Refrigeration, Electronic Cooling, Air Purifying Devices, Air Shower and Fan Filter Unit (FFU) for Clean Rooms, Exhausting and Air Conditioning for Buildings and Vehicles, etc. Adhering to the idea of maintaining an eco earth of energy-saving, Heko’s Electronically Commutated  Brushless DC external rotor motor fan emerges with times. “HEKO” brand products has been access to the markets of over 100 countries worldwide and established integrated long-term partnership with well-known brands and markets both at home and abroad. Heko Electronic (Suzhou) Co., Ltd sincerely anticipates close cooperation with you and your esteemed company, and march forward by joint efforts.
Certifications
Why Choose Us

1.Professional EC Fan Manufacturer 2.High Efficiency EC Motor Fan 3.Competitive Price 4.Senior Engineer Support with Strict Quality Control 5.Aftersales Service with Prompt Feedback
Packing & Delivery
FAQ
Q1. What is the advantage about your company? A1. Our company has professional team and professional production line. Q2. Why should I choose your products? A2. Our products are high quality and low price. Q3. Any other good service your company can provide? A3. Yes,we can provide good after-sale and fast delivery.
