Home /Products/DC Blower Fan/Round Electric Motor Cabinet Medical Equipment 254mm 220V 33W 25489 Smoke AC Blower

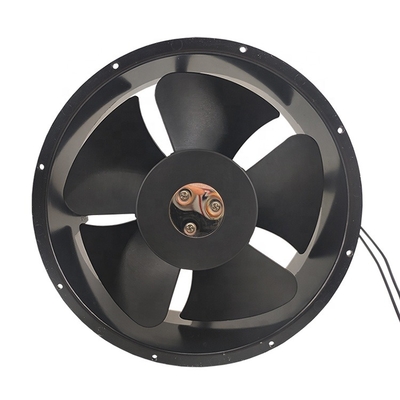

Round Electric Motor Cabinet Medical Equipment 254mm 220V 33W 25489 Smoke AC Blower

80 pieces
MOQ
Round Electric Motor Cabinet Medical Equipment 254mm 220V 33W 25489 Smoke AC Blower
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Axial Flow Fan
Applicable Industries: Medical Equipment, Welding Machine, Electric Equipment, Car Charging Pile
Customized Support: OEM, ODM
Electric Current Type: AC
Mounting: FREE STANDING
Blade Material: Plastic
Model Number: BY25489B2M
Voltage: 110V, 220V, 380V
Warranty: 2 Years
After-sales Service Provided: Online Support
Product Name: 25489 Cooling Fan
Size: 254x89mm
Bearing Type: Dual Ball Bearing
Material: Aluminum Frame
Motor: 100% Copper Motor
Current: 0.14A
Noise: 56dba
Certification: CE,ROHS,FCC
Basic Infomation
Certification: CE,ROHS,FCC
Model Number: BY25489B2M
Payment & Shipping Terms
Packaging Details: packaging details:carton/pallet package(Internal knife card or foam and double layer carton), 8pcs in carton, 18.5KG each carton. package size: 54*44*30cm
Product Description
Product Description
Specification
Size
254x89mm
Frame material
Aluminum Alloy
Fan blade material
PBT thermoplastic black UL94-V
Motor
Motorishaded pole induction motor（100% pure copper）
Operation temperature
-10°+70°
Details Images
More Specifications
AC8025
80x80x25mm
AC8038
80x80x38mm
AC9225
92x92x25mm
AC9238
92x92x38mm
AC11025
110x110x25mm
AC12025
120x120x25mm
AC12038
120x120x38mm
AC13538
135x135x38mm
AC15050
150x150x50mm
AC17238
172x150x38mm
AC17251
172x150x51mm
AC18060
180x180x60mm
AC20060
200x200x60mm
AC22580
225x225x80mm
AC22060
220x60mm
AC25489
254x89mm
Packing & Delivery
Our Sevice: -OEM service based on MOQ1000pcs; -100% test before shipping; -Moisture-proof, waterproof, environmentally friendly flame retardant materials are optional; -The defective rate is less than 5 ‰; -Provision of engineering services; -All can be customized.
Company Profile
Certifications
FAQ
1. What are DC fans and AC fans?
A: DC fans are powered by DC voltage, always 5V, 12V, 24V, 48V, 60V and 72V.
The AC fans are powered by AC voltage, always 110V, 220V and 380V.

2. How do we perform quality control?
A: Generally, there are two ways to monitor reliability during manufacturing.
* Early Life Testing This is used as a means of process control to identify any potential manufacturing issues and determine the effectiveness of aging. 5 samples were randomly drawn from one of the production lines per day and aged at 75°+/-10° for 48 hours.
*Ongoing Reliability Demonstration This is a long-term plan to provide data on an ongoing basis to demonstrate product reliability. Randomly collect 10 units from one of the production lines each month for use in Aged 168 hours at 75°+/-10°. Equipment is monitored and tested daily. The faulty unit will be analysed and corrective action taken if necessary

3. What are your payment terms?
A: We accept T/T, Western Union, Paypal, L/C payment.
100% payment for sample order, 30% prepayment and 70% balance before shipment.

4. What is your packaging?
A: In order to ensure that the goods will not be damaged during transportation, we first use a knife card carton, and then pack
the outer carton, which is a double guarantee. We can also customize packaging according to your needs
