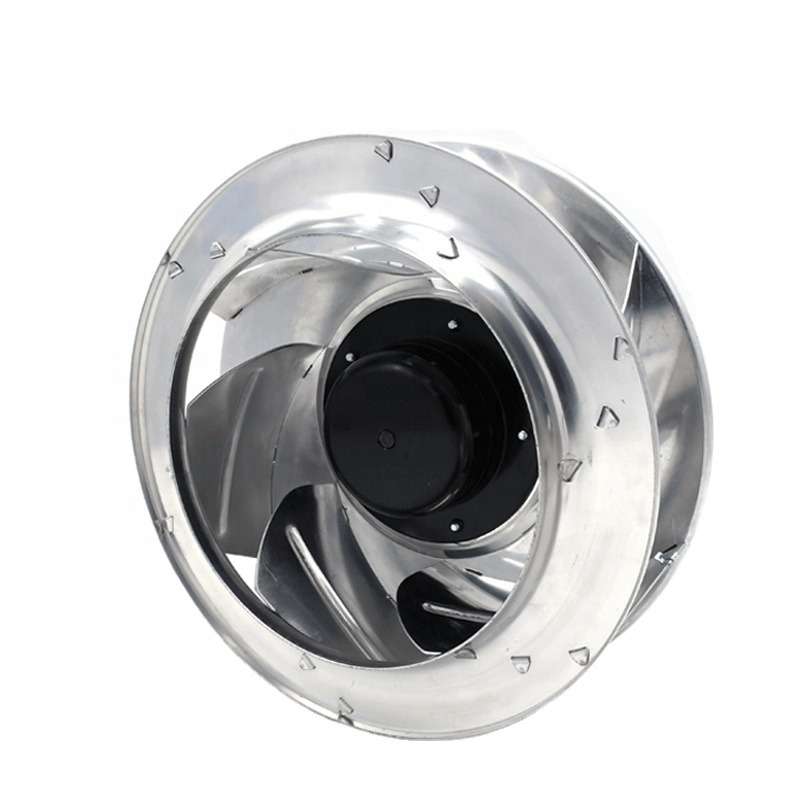

Hotels Air Filtration System Large Radial Rear Motor EC 280mm Centrifugal Fan

10 Units
MOQ
$75.56(10 - 499 Units) $67.89(500 - 999 Units) $62.39(>=1000 Units)
Price
Hotels Air Filtration System Large Radial Rear Motor EC 280mm Centrifugal Fan
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Centrifugal Fan
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Bevera
Customized Support: OEM, ODM
Electric Current Type: AC EC DC
Blade Material: Cast Iron
Mounting: FREE STANDING
Model Number: AC-280, EC102-B280, EC92-B280, DC92-B280
Voltage: 24V 48V 310V 115V 220V 380V 400V
Warranty: 1 Year
After-sales Service Provided: Online Support
Bearing: Maintenance Free Ball Bearing
Fan Life: 40000hrs
Protection Grade: IP44
Insulation Class: B
Weight: 4kg
Noise: 64~87dB
Certification: Ce, CCC, RoHS
Basic Infomation
Certification: ce, CCC, RoHS
Model Number: AC-280, EC102-B280, EC92-B280, DC92-B280
Payment & Shipping Terms
Packaging Details: Foam Carton Packaging
Supply Ability: 5000 Unit/Units per Day
Product Description
Dimensional Drawing
Products Specification
EC Centrifugal Fan
Rotation direction
Clockwise, viewed toward rotor
Material of blade
Cast Iron
Leakage current
According to GB 12350
Protection function
Over-temperature/Over-current/Locked-rotor Protection/Lack-voltage Protection/Over-voltage Protection
Level of protection
IP44
Insulation class
B
Noise
63dB (A)
RH range
5~90% （No rime or condensation with the ambient.)
Atmospheric pressure range
86~106 kpa
Max. ambient temperature (transport/storage)
+65℃
Min. ambient temperature (transport/storage)
-25℃
Duty type
S1
Control Methods
0-10V V.DC/PWM
Power output
+10V V.DC
Packaging
Carton/Foam carton packaging
Fan life
The designed lifespan of the fan is 40000 hours assuming the fan is running at rated voltage, rated load and 40℃ environmental temperature
Line
Connection
Color
Function


1
L
Brown
Single phase
50/60Hz

N
Blue


PE
Yellow/
green
Protective earth




2
+10V
Red
+10V output

0-10V/PWM
Yellow
Speed control input

GND
Blue
GND

Tach
White
Tach output 1 pulse/R
Application
Company Profile
Zhongshan Aden Environmental Technology Co., Ltd.
is a technology-based firm focusing on ventilation and air purification area integrated with product R&D, manufacturing and sales. We have passed a series of certifications such as ISO9001:2008, 3C, CE, RoHS. Our main products include ventilation exchanger, ERV, HRV, pipeline blower, duct fan, axial fan, centrifugal fan, air curtain, air purifier, fan motor and so on. Our company has modern standard workshops, advanced production equipment, and product research laboratory satisfying the production. We provide customers with innovative, attractive, convenient products and services relying on years of in-depth research and technology accumulation in the ventilation and air purification field.
Our main product:
1. AC EC DC Centrifugal Fan
2. Single Inlet Dual Inlet Blower Fan
3. AC EC DC Axial Fan
4. Ventilation Product
5. Household Appliances Motor
6. Customized Service
Business office
Business office
Intelligent laser cutting machine
Production line
Hydraulic precision bending machine
Injection molding production
Die casting tool workshop
Certifications
CE, CCC, RoHs, ISO9001
FAQ
Q : Can your products’ label, packaging, design be customized?
A : Yes, we offer customized service.

Q : What is your monthly production capacity?
A : Our factory production capacity is 50,000 sets per month.

Q : Can I get a sample for quality check?
A : Yes, we offer sample.

Q : How soon is the lead time?
A : For sample order, 3-5 days if in-stock. For bulk order, 15-35 days.

Q : How can you guarantee the quality?
A : Professional product quality inspection team ensures order defective rate;
Otherwise, we take full responsibility according to our wholesome after-sales support system.

Q : What are your terms of payment?
A : Payment terms vary among different countries. Generally, 30% T/T in advance, 70% balance before shipment.
