Home /Products/Vacuum Air Blower/Hotel Yuton YYF Inflatable Metal Ventilation Exhaust Extractor Air Motor Dust Remover Steam Vacuum Cleaner Fan

Hotel Yuton YYF Inflatable Metal Ventilation Exhaust Extractor Air Motor Dust Remover Steam Vacuum Cleaner Fan

10.0 Pieces
MOQ
Hotel Yuton YYF Inflatable Metal Ventilation Exhaust Extractor Air Motor Dust Remover Steam Vacuum Cleaner Fan
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Centrifugal Fan
Applicable Industries: Hotels, Home Use, Energy & Mining, Advertising Company
Customized Support: OEM, ODM
Electric Current Type: AC
Blade Material: Cast Iron
Mounting: FREE STANDING
Model Number: YYF
Voltage: 220V/380V
Warranty: 1 Year
After-sales Service Provided: Video Technical Support
Fan Housing Material: Cast Iron
Impeller Material: Cast Iron/ Aluminum
Voltage/Frequency: 220V/380V/50Hz
Revoulution: 2800rpm
Air Volume: 420m3/h~2600m3/h
Pressure: 1100pa~2417pa
Fan Motor Phase: Single Phase/three Phase
Certification: CCC, Ce
Basic Infomation
Certification: CCC, ce
Model Number: YYF
Payment & Shipping Terms
Packaging Details: carton box with plywood
Supply Ability: 6000 Unit/Units per Month
Product Description





Headers



Product Description

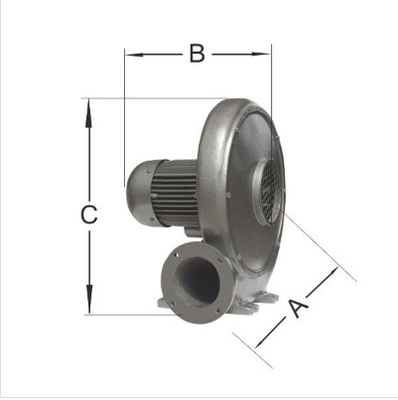

Metal Inflatable Blower Fan

Application

Used in  smelting or equipped with oil melting furnace and kitchen equipment,inflation and  pressuring facility.Also used with industrial boiler,machine for plastic products or other equipment which need  air blasting.

Features:

1.New style,light weight

2.large airflow,low noise

3.Easy to maintance

4.Air outlet angle location for the blower is 0°

Material:

Cast iron fan housing (Aluminum for option)

Cast iron impeller (Aluminum for option)

All colors available

Motor:

220V/50HZ,380V,50HZ

100% copper wire

special voltage & frequency could be customized

Package: carton box





YYF Series Medium Pressure Air Blower(Metal Housing)

Model    (No.) ID for Air Outlet Voltage Power Revolution Air Flow Pressure      (Pa)  Packing   Size                (cm)
    (V) (KW) (rpm) (m3/h)
YYF6312 60mm 220/380 0.18 2800 420 1100 36X27X38
YYF6322 60mm 220/380 0.25 2800 480 1200 36X27X38
YYF7112 75mm 220/380 0.37 2800 720 1880 40X29X45
YYF7122 75mm 220/380 0.55 2800 1140 1980 40X29X45
YYF8012 80mm 220/380 0.75 2800 1320 2000 42X35X46
YYF8022 80mm 220/380 0.9 2800 1380 2140 42X35X46

YYF Series Medium Pressure Air Blower(Aluminum Housing)

    Model

    (No.)

 ID for Air

 Outlet

      Voltage   Power    Revolution       Air Flow

   Pressure

        (Pa)

Packing  Size

          (cm)
        (V)    (KW)       (rpm)        (m3/h)
YYF6312 60mm 220/380 0.18 2800 420 1100 36X27X38
YYF6322 70mm 220/380 0.25 2800 480 1200 36X27X38
YYF7112 75mm 220/380 0.37 2800 720 1880 40X29X45
YYF7122 75mm 220/380 0.55 2800 1140 1980 40X29X45
YYF8012 100mm 220/380 0.75 2800 1320 2000 42X35X46
YYF8022 100mm 220/380 0.9 2800 1380 2140 42X35X46
YYF8032 100mm 380/50Hz 1.1 2800 1500 2400 42X35X46
YYF9022 120mm 380/50Hz 1.5 2800 1800 2780 49X40X53
YYF9032 120mm 380/50Hz 2.2 2800 2000 2960 49X40X53
YYF10022 140mm 380/50Hz 3 2800 2600 3260 55X45X61







Payment

T/T,30% deposit in advance,the balance should be paid before shipment

Price Term

Normally FOB Shunnde,CIF,CNF,EXW is acceptable

Delivery time

Normally 1X40HQ within one month, not including the time of sample confirmatio







Our Services

1. Warranty:  one year warranty for all products.

2. Products Quality: 100% goods inspection before dispatch.

3. Delivery time: a timely delivery, normally 30% days



FAQ

QUESTION AND ANSWER



Q: What information do you need to provide before get a quotation?



A: Generally, size, voltage, frequency, pressure, airflow of the fans, it is good for us to choose right fan for you and offer you a good quotation.



Q: Can I have sample for testing before order products?



A: Yes, of course, we sincerely suggest that customers buy sample to learn the quality first.



Q: Can I have discount for the quoted price?



A: Yes, bust should tell us ahead the quantity you would place to order, so that we can provide you with the best price.



Q: What is the warranty of products?



A: All of our products have 1 year warranty
