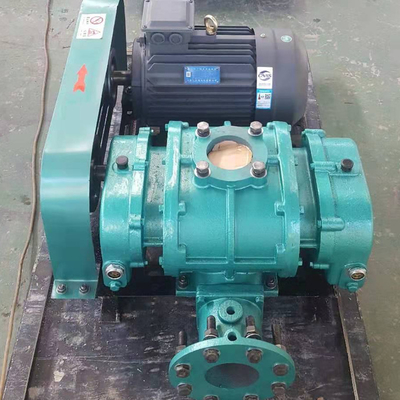

10hp Blower Model 125 Three Lobe Root Blower

1 Set
MOQ
$888.00(>=1 sets)
Price
10hp Blower Model 125 Three Lobe Root Blower
Features Gallery Product Description Request A Quote
Features
Specifications
Rated Voltage: 220/380/415/440/480/600/660
Model Number: 125
Application: Air Blower
Pressure: High Pressure
Power Source: Electric Blower
Product Name: Roots Blower
Color: Customer Required
Certification: CE
Power: 7.5 KW
House Power: 10 Hp
Construction: Three Lobe
Usage: High Pressure Blowing
Noise: Less 60 DB
Package: Wooden Case Or Iron Case
Warranty: 2 Years
Basic Infomation
Certification: CE
Model Number: 125
Payment & Shipping Terms
Packaging Details: wooden case , iron case
Supply Ability: 20 Set/Sets per Day
Product Description
Product Description
10hp model 125 three lobe roots blower detailed information
series
three lobe roots blower
drive
electric motor
color
customers request
power
10 hp
discharge pressure
9.8 KPA - 49 KPA
air volume
5.55 M3/min - 12.48 M3/min
introduction
10 hp model 125 three lobe roots blower is a kind of synchronous compression machine with two impeller. Each three-blade rotor is supported by two
bearings. By using a pair of synchronous gears, the relative position of the two rotors remains unchanged. It is a volumetric
blower with the characteristics of forced gas transmission

    • applied range


petrochemical, building materials, electric power, smelting, chemical fertilizer, mine, port, textile, food, papermaking,
aquaculture and sewage treatment, environmental protection industry, and many other areas, mostly used for conveying air, after
sealing can also be used to pump gas, hydrogen gas, acetylene, carbon dioxide and other inflammable, explosive and corrosive gas.

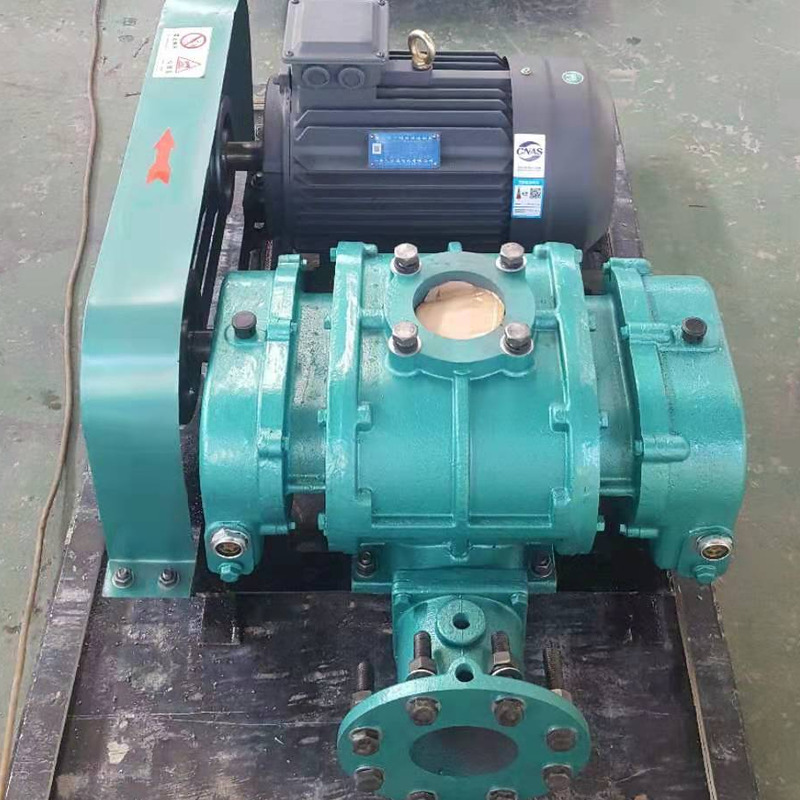

Detailed Images
Spiral shape is adopted in the inlet and exhaust ports, so that the process of inlet and exhaust is cut in accordance with the
direction of spiral line, avoiding the pulsating noise and vibration that breaks out instantly when the old roots blower exhausts,
and the operation noise is low.
Size Information
Detailed information of FDSR-125 three lobe roots blower
model
discharge pressure
power
speed (RPM)
air volume
(M3/min)
installation dimension
FDSR 50
9.8 KPA - 78.4 KPA
0.75 KW -5.5 KW
1100-2120
0.49-2.48
1360*350*850 MM
FDSR 65
9.8 KPA - 78.4 KPA
0.75 KW -7.5 KW
1110-2130
0.76-3.64
1450*400*950 MM
FDSR 80
9.8 KPA - 78.4 KPA
2.2 KW - 11 KW
1140-1900
2.07-5.43
1800*480*1200 MM
FDSR 100
9.8 KPA - 78.4 KPA
3 KW - 18.5 KW
1060-1980
2.94-9.07
2000*580*1300 MM
FDSR 125
9.8 KPA - 78.4 KPA
4 KW - 30 KW
980-1850
5.04-12.48
2300*760*1750 MM
FDSR 150
9.8 KPA - 78.4 KPA
7.5 KW - 55 KW
810-1730
10.39-27.05
2850*760*1750 MM
FDSR 200
9.8 KPA - 78.4 KPA
18.5 KW - 110 KW
810-1480
26.35-59.20
3400*980*2100 MM
FDSR 250
14.7 KPA - 78.4 KPA
45 KW - 132 KW
990-1480
40.38-90.5
3750*1180*2870 MM
FDSR 300
14.7 KPA - 78.4 KPA
55 KW - 200 KW
990-1480
71.63-131.9
3900*1280*2870 MM
Packing&Shipping
wooden case and iron case packaged
send by ship / plane / train
Sales Area
Sold to every country of European Union , Russia , America , Canada , Argentina , New Zealand , Australia , Malaysia , Vietnam ,
Thailand ,Ukraine etc. More than 50 countries and region .
Company Introduction
Shandong Fengda Blower Co.,LTD. ,Located in Jinan, An provincial capital city in Shandong Province, China. We have 30 years
experience of blowers producing,
Our company is a nation-appointed professional manufacturer of machines for roots blower, three lobe roots blower, roots vacuum
pump , high-pressure roots blower and centrifugal blower etc.,all 8 series products has ISO and CE certificated approved,Our
products all with high quality and verified by the state, have passed the national technological evaluation for professional
machinery and being recognized by the state.

Our Strength

Company area : 20,000 M2 more
workers             : 40 peoples more
engineers          : 10 peoples more
production capacity : 2000 sets every year
