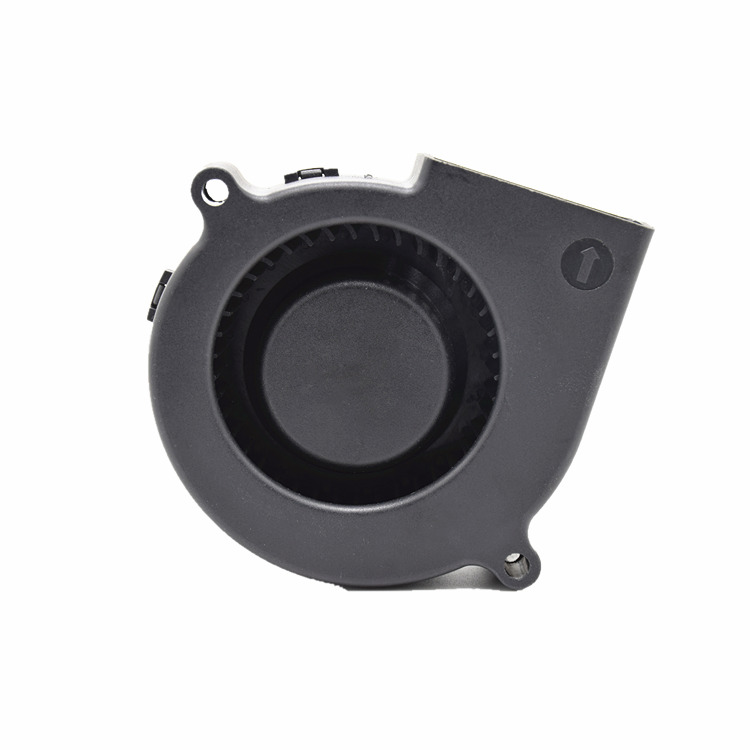

Hotels 12v 24v DC Blower Fan 75x75x30mm Brushless Centrifugal DC Fan Blower

2 Pieces
MOQ
$1.60(2 - 99 Pieces) $1.20(100 - 999 Pieces) $1.10(>=1000 Pieces)
Price
Hotels 12v 24v DC Blower Fan 75x75x30mm Brushless Centrifugal DC Fan Blower
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Centrifugal Fan
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Bevera
Customized Support: OEM, ODM
Electric Current Type: DC
Blade Material: PBT Engineering Plastic
Mounting: Screw Fixing
Model Number: XD7530
Voltage: 5v
Warranty: 2 Years
After-sales Service Provided: Free Spare Parts
Rated Current: 0.5A
Noise Level: 51dBA
Fan Life: 30000-50000Hours
Weight: 95g
Bearing Type: Sleeve/Two Ball Bearing
The Sample: Free
Motor: Copper Motor
Color: Black
Size: 75X75X30mm
Name: Mini Air Blower Fan
Basic Infomation
Model Number: XD7530
Payment & Shipping Terms
Packaging Details: Carton box with cardbaord, 120pcs/Ctn, Carton size: 48x35x30cm or Customized! Xuhongxiang 70mm 7530 5V 12V 24V high pressure dc mini air blower fan
Product Description

Product Description

Type:

DC blower fan

Size:

75mmX75mmX30mm

Material:

PBT (UL94V-O) plastics

Voltage:

5V 12V 24V

Speed:

2500-4500RPM

Air Volume:

7-15.64CFM

Bearings:

Ball Bearing or Sleeve Bearing

Power Interface:

2,3,4Pin

Performance:Support for:

PWM,FG,LG

Weight:

95g

Noise:

51dBA

Color:

White, Black,customer request

Motor:

Brushless DC, auto restart Impedance & polarity protected

Operation temperature:

-20° C~80° C

Insulation Resistance;

10 At 500VDC between lead and frame

Dielectric Strength:

1 min at 500VAC/50-60Hz, current min 5mA Operation Humidity: 20%~85%

Working voltage:

Rated voltage± 15%

Life Expectancy:

50, 000 hours at 20℃-Ball, 30, 000 hours at 20℃-Sleeve

Motor Protection

1. Ball bearing and IC are imported from Japan,Germany

2. Environmentally friendly and high temperature resistant

3. Motor lock flow protection and reverse connection protection

4. Water proof for IP68

5. PWM speed regulation

6. FG signal output

7. RD alarm function

UNIT:mm=inch

If the parameters you need are not in the table,

please contact us,can customized according to your requirements

Widely used
3D printers,Stage lighting,VR equipment,Intelligent Manicure machine, Projector,High-speed camera,Head mounted display,Automotive industry, Cabinet industry, Power industry,UAV application, Electric forklift,LED lighting industry, Hand held air detector,Charging machine,Nebulizer.Electromagnetic oven,Humidifier,Smart toilet,Intelligent household lampblack machine,Air purifier,Car GPS,Car LED lamp,Aromatherapy machine.CPU cooler,etc.

Certifications

Company Information

Packaging & Shipping

FAQ

Q1. How can we know the product quality?
A1: We suggest you to order a sample. Also, you can send us email for detail photos for checking if you cannot get enough information in the product page.

Q2. Is it the final price in the price list?
A2:No, there still have some negotiated room. It is depends on the order you placed, the more you placed, the lower price you will get.

Q3.Can you offer OEM/ODM service?
A3:YES. The OEM/ODM is welcomed, we can printing any logo on the sample as your require.

Q4. How can I send inquiry?
A4:When you find something you are interested, you can click “chat now”, or you can leave your information to us.

Q5.What is your payment?
A5:We usually accept payment based on L / C, T / T, Western Union and PayPal

Q6:If I place an order, how long will it take to delivery it?
A:It usually takes about only 2-3 days on receipt of payment, depends on the quantity ordered and the stock status.

Q7: What can I do if I can not find the suitable fan model in the fan list?
A7:Please contact us for customized fans.If you want other high performance or other requirements, please contact me for more details, thanks.

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
A:2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.If you want to get more information about our company,pls contact us immediately.
